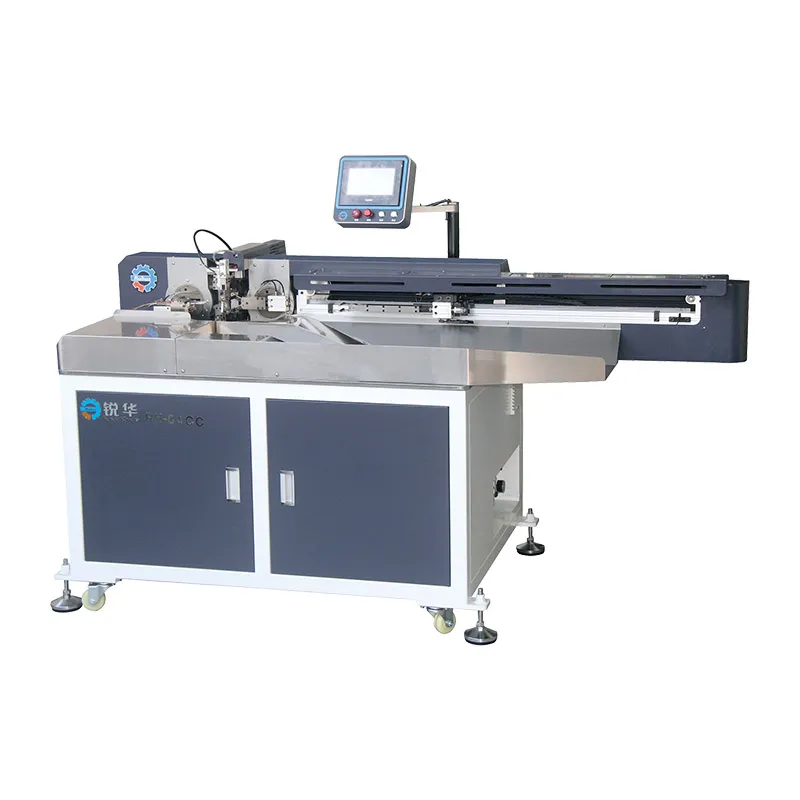

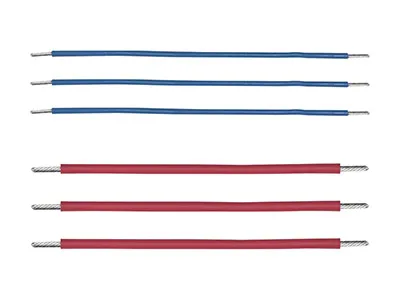

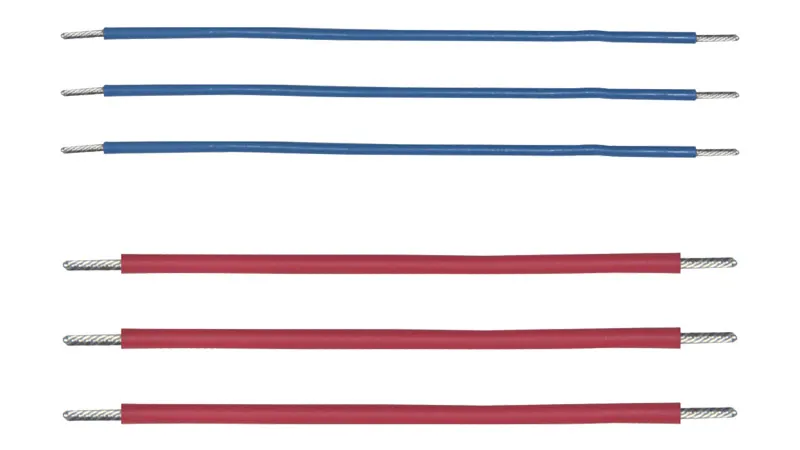

This wire tinning solution processes up to eight wires simultaneously, supporting a range of operations such as cutting, single and double-sided stripping, half stripping, twisting on one or both ends, and tinning on either or both sides. With a crimping capacity of approximately 9,000 to 16,000 wires per hour, our wire tinning machines are built to meet the demands of fast-paced manufacturing environments.
| General | Model | RH-04CC |
|---|---|---|
| Dimensions (L×W×H) | 1050×610×1120mm | |
| Weight | Approx. 450kg | |
| Power Supply | AC220V 50/60HZ shingle phase | |
| Rated Current | 10A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2m | |
| Functions | Crimping Capacity | Approx. 9000-16000 wires/hr (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, One-sided half stripping, Two-sided half stripping, One-sided twisting, Two-sided twisting, One-sided tinning, Two-sided tinning | |
| Control System | Single-chip microcomputer, servo motor | |
| Detection Devices | Wire shortage detection, air pressure test | |
| Auxiliary Equipment | Wire strip waste collector, air storage buffer tank | |
| Operation Control | Wire feeding, cutting and stripping are controlled via touch screen, with full digital control | |
| Application Range | Cutting Length | 10-600mm (customizable) |
| Stripping Length | Front: 1-6mm Rear: 1-6mm | |
| Wire & Cable Type | Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG30#-AWG18#) | |
| Max. Number of Pin | 8-16pin |
Equipped with a robotic clamping mechanism to ensure that wire lengths remain stable and accurately aligned during processing, delivering consistent and reliable results.
The integrated error monitoring system displays real-time alerts on a user-friendly touch screen, allowing operators to quickly identify and resolve issues, minimizing disruptions to production.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
