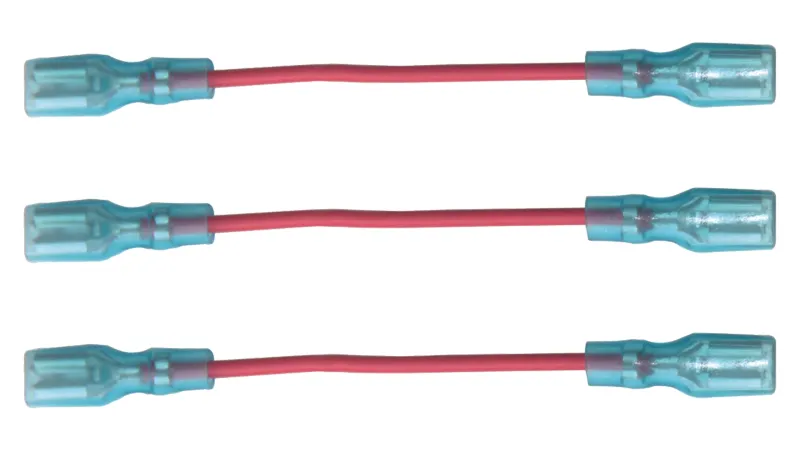

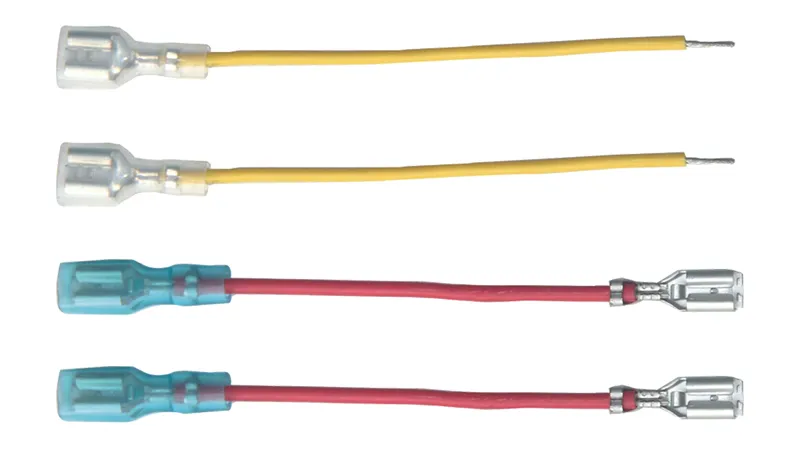

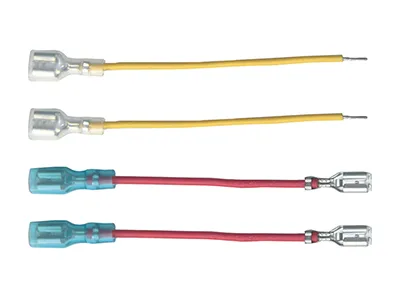

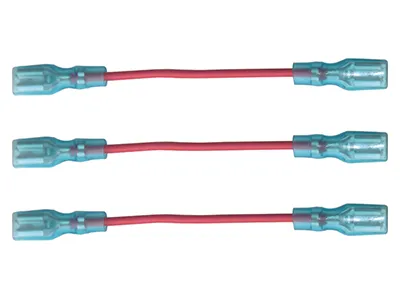

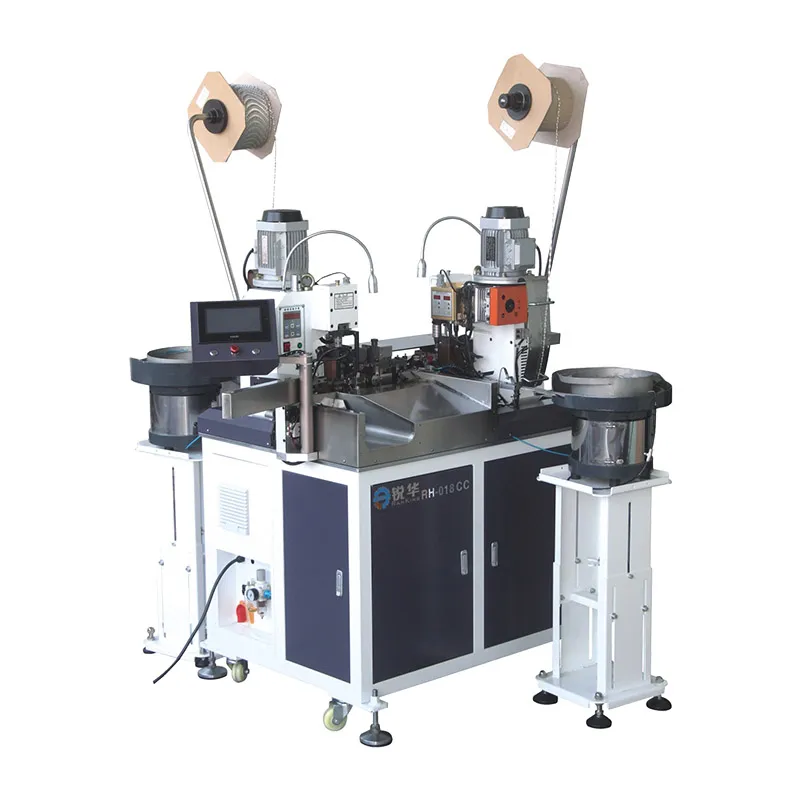

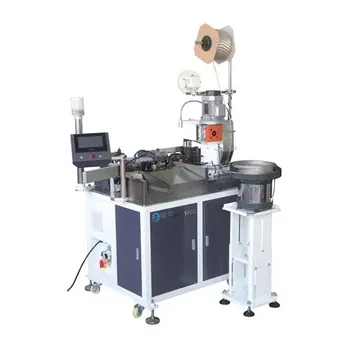

This model of wire terminating machine integrate two-sided terminal crimping with sleeve insertion, handling tasks such as crimping straight terminals (187/250) or inserting and positioning insulation sleeves. Its flexibility extends to configurations that include partial stripping, single-end crimping, and sleeve insertion, making it a practical choice for diverse cable assembly applications.
| General | Model | RH-018CC |
|---|---|---|
| Dimensions (L×W×H) | 1450×1800×1600mm | |
| Weight | Approx. 580kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 2×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2300 wires/hr (depending on wire and sleeve) |
| Wire Processing | Terminal crimping and sleeve insertion by using ball screw mechanism (shifting between side A and side B) | |
| Two-sided half stripping, Two-sided crimping, Two-sided crimping and sleeve insertion, One-sided crimping + one-sided half stripping, One-sided crimping + one-sided sleeve insertion | ||
| Split type blade cutting and stripping, Twisting by motor rotation | ||
| Control System | PLC control, servo motor | |
| Operation Control | Wire feeding, cutting and stripping are controlled via touch screen, with full servo control | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure (qualified and non-qualified products are placed separately) |
| Application Range | Cutting Length | 30-9999mm |
| Stripping Length | Front: 0-10mm, Rear: 0-15mm | |
| Wire & Cable Type | Electric wire (AWG26#-AWG16#) |
Designed with a modular construction that allows fast and easy accessory changes to adapt to different product specifications, saving both machine costs and factory space.
An integrated error monitoring system displays real-time alerts on a touch screen, simplifying fault detection and ensuring efficient troubleshooting.
To produce high-quality cable assemblies, it’s important to use wire terminating equipment that can handle precise crimping and sleeve insertion. This wire terminating system supports operations such as single-end terminal crimping, sleeve insertion, twisting, and tinning, with a crimping capacity of 2,300 wires per hour. It is compatible with straight terminals (187/250), ensuring accurate sleeve positioning while also accommodating configurations including half stripping and flag terminal crimping.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
