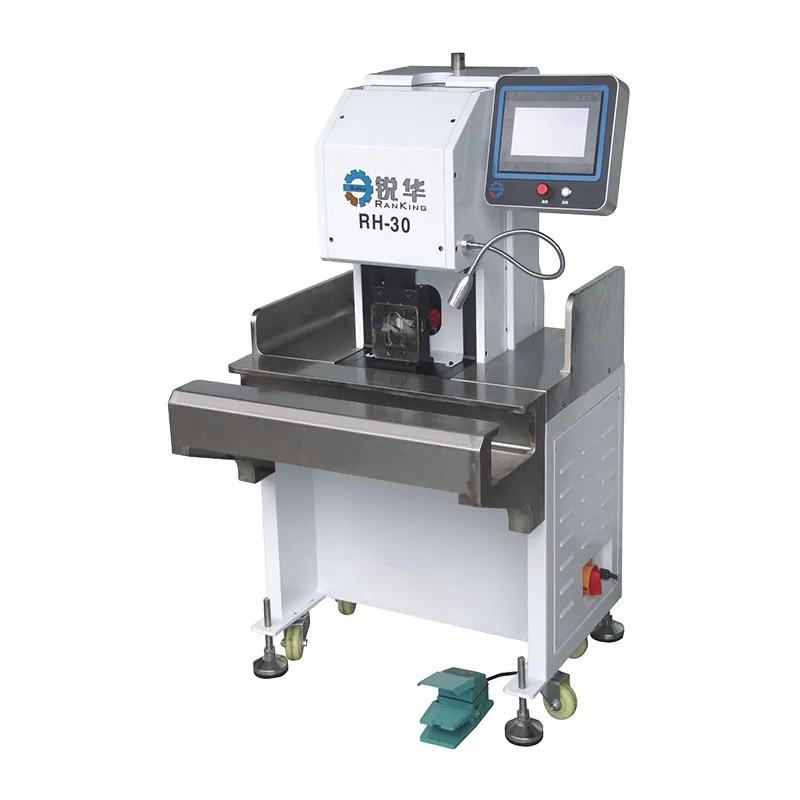

RH-10T/20T/30T/50T semi-automatic terminating machine

Servo Terminal Crimping Machine (without Changing Dies)

Wire terminating machine

The optical encoder provides precision control with 1µm accuracy, ensuring that each crimping operation delivers consistent and reliable results.
External barcode scanner connectivity allows seamless integration with ERP management systems, enabling streamlined production workflows and improved traceability.
Capable of storing past crimping data, which can be used for quality management and production tracking, ensuring high standards across all operations.

Technical Data

Model	RH-10T	RH-20T	RH-30T	RH-50T
Effective Stroke	40mm	50mm	75mm	75mm

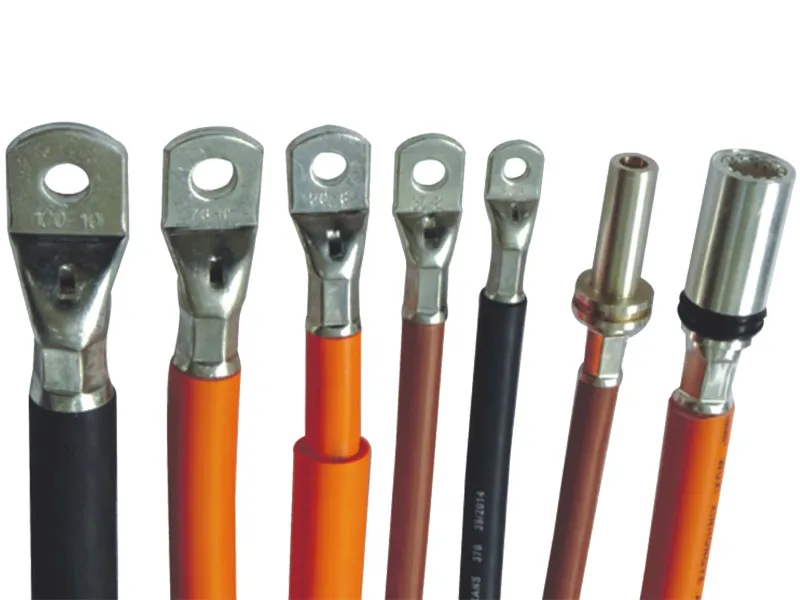

Crimping Range	2.5-35mm²	2.5-95mm²	2.5-180mm²	2.5-300mm²
Crimping Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Dimensions (L×W×H)	540×350×785mm	560×400×985mm	560×400×985mm	700×480×1225mm
Weight	165kg	180kg	295kg	320kg
Power	50W	50W	50W	50W
Crimping Capacity	800-1500 crimps/hr	800-1500 crimps/hr	800-1500 crimps/hr	800-1500 crimps/hr
Startup	Touch screen, foot switch
Operation Method	Touch control, automatic adjustment of crimping height
Crimping Dies	Hexagonal die, square die, B-type die

Features

The built-in recipe database simplifies production by allowing operators to save and quickly switch between product configurations, reducing setup time and improving efficiency.
The ability to quickly adjust terminal heights without changing dies enhances flexibility and adaptability for handling a variety of terminal assembly tasks.
Optional computer-based control (PC version) enables EMS system integration for centralized production management and monitoring, improving oversight in large-scale manufacturing environments.

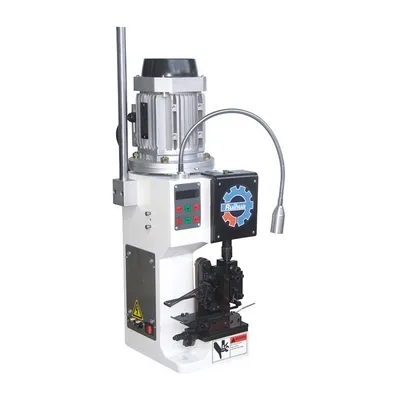

Related Products
