| Crimping Range | 0.5-4mm² (max. crimping length 12mm) |
| Crimping Capacity | 1000-1300crimps/hr |
| Detection Devices | Crimp terminal shortage detection |
| Drive | Motor/ball screw mechanism |
| Control | Touch screen and PLC control, MOONS' drive |
| Wire Clamping Device | Motor drive, program control for clamping force |
| Crimping Device | Motor drive, program control for crimping force |
| Storage capacity | Up to 100 cable types can be stored |

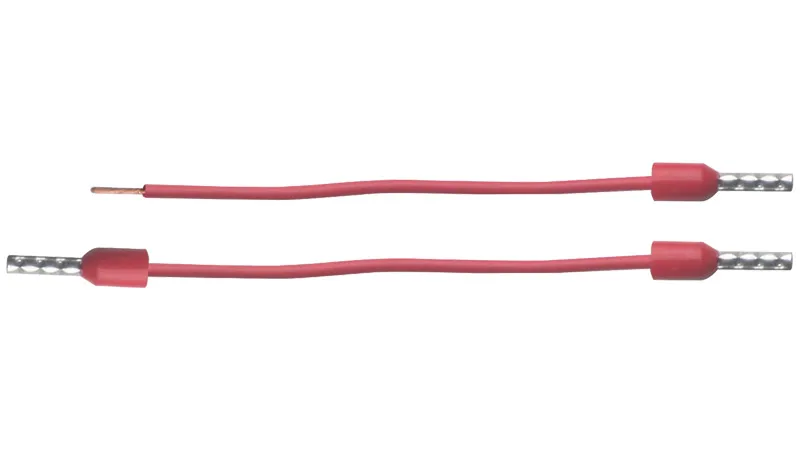

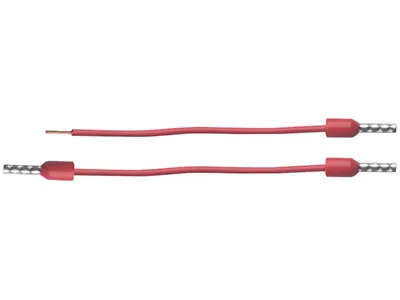

| Crimping Shape | Square crimp (other shapes can be customized) |
| Power Supply | AC220V/50Hz/60HZ 400W |
| Air Pressure | 0.6-0.8Mpa (the air must be filtered and dried) |
| Dimensions (L×W×H) | 450×350×425mm |
| Weight | Approx. 68kg |
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
